White Fused Alumina F10-F220 Particle Size for Metal Parts Performance

Product Description

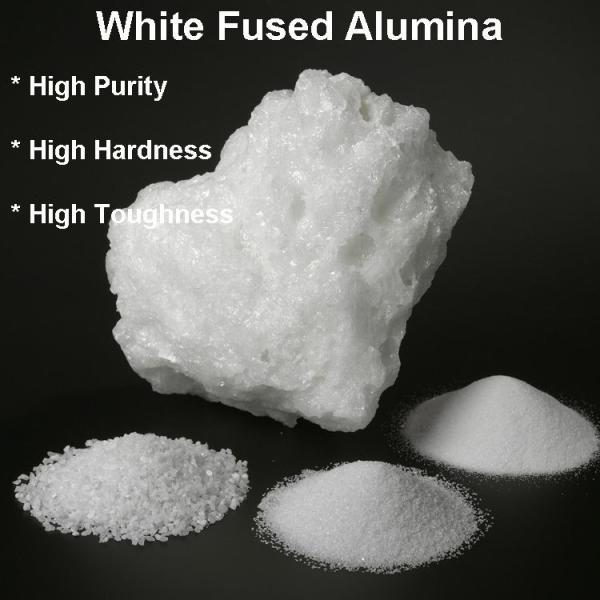

White Fused Alumina (white corundum)
WFA Abrasive blasting media is made of 99% aluminum oxide powder as raw material, which is refined and crystallized by electric melting (thus white corundum is also called fused alumina and white fused alumina). The white corundum sand produced by our factory has high purity, low impurities, low sodium content, uniform particles and high whiteness.

Product Feature

1. The Al2O3 purity is high(99%min). So the hardness & grinding ability is high with good grinding efficiency.

2. High wear-resistance. Even in high-temperature circumstances, the strength is still excellent.

3. The white fused aluminum oxide powder is suspension treated by water. So it is of flowability and easy to scatter.

4. Low oil absorption especially for water-based paint.

5. Neutral property with PH value around 7-8.

6. High whiteness. It doesn't affect the color of paints or coatings adding Al2O3 powder.

7. Resistant to most corrosive alkali and acid. It doesn't dissolve in water.

8. Resistant to high temperature up to 1900 °C. 9. Good particle size consistency without big size grains. So it prevents scratch on the grinding substrate.

Chemical Composition
AL2O3	99.62%
Fe2O3	0.02%
Na2O	0.18%
K2O	0.01%
SiO2	0.07%
CaO	0.02%
MgO	0.01%
L.I.O.	0.05%

Physics Properties: white corundum, white fused alumina
Color	White
Crystal form	Triangal crystal system
Mohs hardness	9.0-9.5
Micro hardness	2000-2200 kg/mm²
Melting point	2250ºC
Maximum operating temperature	1900ºC
Specific Gravity	3.95g/cm3
Volume density	3.6g/cm3
Particle shape	Angular

Product model

F Grit Size	Mean diameter in um	Bulk Density(LPD) in g/cm3
F8	2460	1.79-1.88
F12	2085	1.78-1.88
F14	1765	1.77-1.86
F16	1470	1.75-1.85
F20	1230	1.74-1.85
F22	1040	1.73-1.84
F24	885	1.73-1.83
F30	745	1.73-1.82
F36	625	1.72-1.82
F40	525	1.71-1.81
F46	438	1.70-1.80
F54	370	1.68-1.79
F60	310	1.68-1.78
F70	260	1.63-1.73
F80	218	1.61-1.71
F90	185	1.59-1.69
F100	154	1.58-1.68
F120	129	1.55-1.62
F150	109	15.2-1.61
F180	82	1.50-1.60
F220	69	1.48-1.58

Applications

1.For Free grinding, such as glass industry.
2.For Friction products and abrasion resistance ground.
3.For Resin or ceramic bonded abrasive,such as grinding wheels,cutting off wheels.
4.For Refractory Raw material, Wear-resistant and fire-proof products.
5.For Grinding and polishing ,such as gringing stone, Grinding block, flap disc.
6.For Coated abrasives,such as abrasive paper,abrasive cloth,abrasive belt.
7.For Producing mold of precision casting and Grinding, lapping and polishing media.

Packing & Delivery

1ton/jumbo bag

Jumbo bag + Wooden pallets
25kgs/bag, 40 bags/jumbo bag
25kgs/woven bag or kraft paper bag

All package can be customized according to customers' requirements

white fused alumina, white fused alumina powder, white corundum, aluminum oxide
