Green Carborundum Sic Silicon Carbide for Abrasive Knife Grinder Hardness 9.0-9.5 Source Artificial Abrasives

Product Description

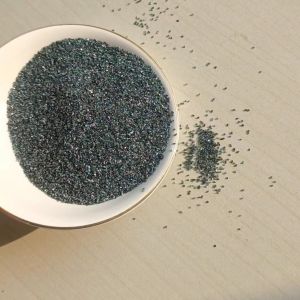

JIS Standard Green silicon carbide

Green silicon carbide is made of quartz sand and petroleum coke through high-temperature melting. The production method is basically the same as that of black silicon carbide, but the requirements for raw materials are different. The smelted crystals have high purity, high hardness and strong cutting force, and are suitable for processing hard and brittle materials. Green silicon carbide is suitable for grinding hard alloys, hard and brittle metals and non-metallic materials, such as non-ferrous metals such as copper, brass, aluminum and magnesium, and non-metallic materials such as precious stones, optical glass and ceramics.

Product Features

Physical property
Crystal shape	Hexagonal
Bulk density	1.55-1.20g/cm3
Grain density	3.90g/cm3
Mohs Hardness	9.5
Knoop Hardness	3100-3400 Kg/mm2
Shatter strength	5800 kPa·cm-2
Color	Green
Melting point	2730ºC
Thermal conductivity	(6.28-9.63)W·m-1·K-1
Linear expansion coefficient	(4 - 4.5)*10-6K-1(0 - 1600 C)

F16~F220

Chemical Composition

Size	SiC (%)	F.C (%)	Fe2O3(%)
F80	99.32	0.18	0.17
F120	99.24	0.19	0.19
F150	99.21	0.20	0.21
F220	99.16	0.21	0.20

Bulk Density

Size	Ordinary Bulk Density g/cm3	High Bulk Density g/cm3	Size	Ordinary Bulk Density g/cm3	High Bulk Density g/cm3
F16 ~ F24	1.38~1.46	≥1.46	F100	1.37~1.45	≥1.45
F30 ~ F40	1.41~1.49	≥1.49	F120	1.35~1.43	≥1.43
F46 ~ F54	1.40~1.48	≥1.48	F150	1.31~1.38	≥1.41
F60 ~ F70	1.40~1.48	≥1.48	F180	1.28~1.38	≥1.38
F80	≥1.46	≥1.46	F220	1.36~1.36	≥1.36
F90	≥1.45	≥1.45

Micropowder for electronic engineering - Japan JIS standard

Features

1. Narrow particle size distribution, sharp particle shape, high purity chemical composition;

2. FEPA standard micropowder is also available;

3. The chemical composition and strength distribution can be customized according to customer requirements.

#700 ~ #3000

Size	Grain distribution				Chemical Composition(%)
	D0 ≤	D3 ≤	D50	D94 ≥	SiC ≥	F.C ≤	Fe2O3≤
#700	38	30	17±0.5	12.5	99.00	0.15	0.15
#800	33	25	14±0.4	9.8	99.00	0.15	0.15
#1000	28	20	11.5±0.3	8.0	98.50	0.25	0.20
#1200	24	17	9.5±0.3	6.0	98.50	0.25	0.20
#1500	21	14	8.0±0.3	5.0	98.00	0.35	0.30
#2000	17	12	6.7±0.3	4.5	98.00	0.35	0.30
#2500	14	10	5.5±0.3	3.5	97.70	0.35	0.33
#3000	11	8	4.0±0.3	2.5	97.70	0.35	0.33

Special micropowder for engineering ceramic materials - FEPA standard

Features

1. The product has high purity and round grain shape;

2. It is suitable for the manufacture of various mechanical shaft seal components, various wear-resistant and corrosion parts, bulletproof armor, high-temperature gas molten metal screen and other advanced engineering materials.Chemical Composition

Size	SiC ≥ %	F.C ≤ %	Fe2O3≤ %	Size	SiC ≥ %	F.C ≤ %	Fe2O3≤ %
F230	99.20	0.15	0.15	F800	98.00	0.25	0.25
F240	99.20	0.15	0.15	F1000	96.50	0.30	0.30
F280	99.20	0.15	0.15	F1200	95.30	0.30	0.30
F320	99.00	0.15	0.18	F1500	94.80	0.30	0.30
F360	99.00	0.20	0.18	F2000	94.50	0.33	0.30
F400	98.80	0.20	0.18	F2500	94.30	0.33	0.33
F500	98.80	0.20	0.25	F3000	94.30	0.33	0.33
F600	98.50	0.25	0.25

Recommend Products

Application Scenarios

1.Refractory,Furnace Burden,Castable,Ramming Compoynd,Refractory Bricks etc
2.Blasting,surface Treatment,Rust Removal
3.Cusmetics products manufacturing,Beauty crafts and Dermabrasion etc
4.Ceramic products
5.Grinding wheels,sandpaper etc
6.Glaze,floor coating,Floor / Wall Laminates
7.raw material of Knife Grinder,Whetstone,oilstone,grinding stone,abrasive stones and so on
8.Used to produce Polishing wax,polishing fluid,grinding powder,grinding fluid and so on
9.Wear-resisting floor,coating,painting etc
10.Brake linings

Packing & Delivery

Packing Details

1ton/jumbo bag
Jumbo bag + Wooden pallets
25kgs/bag, 40 bags/jumbo bag
25kgs/woven bag or kraft paper bag
All package can be customized according to customers' requirements
